· 2.5V to 5.5V Input Voltage Range
· High Efficiency: Up to 96%(@3.3V)
· 1.5MHz Switching Frequency Operation
· PFM in Light Load
· Up to 1.2A Output Current with VIN=5V
· No Schottky Diode Required
· 0.6V Feedback Voltage
· 100% Duty Cycle in Dropout
· Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
· Short Circuit Protection
· Thermal Fault Protection
· Inrush Current Limit and Soft Start
· Input over voltage protection (OVP)
· <1μA Shutdown Current

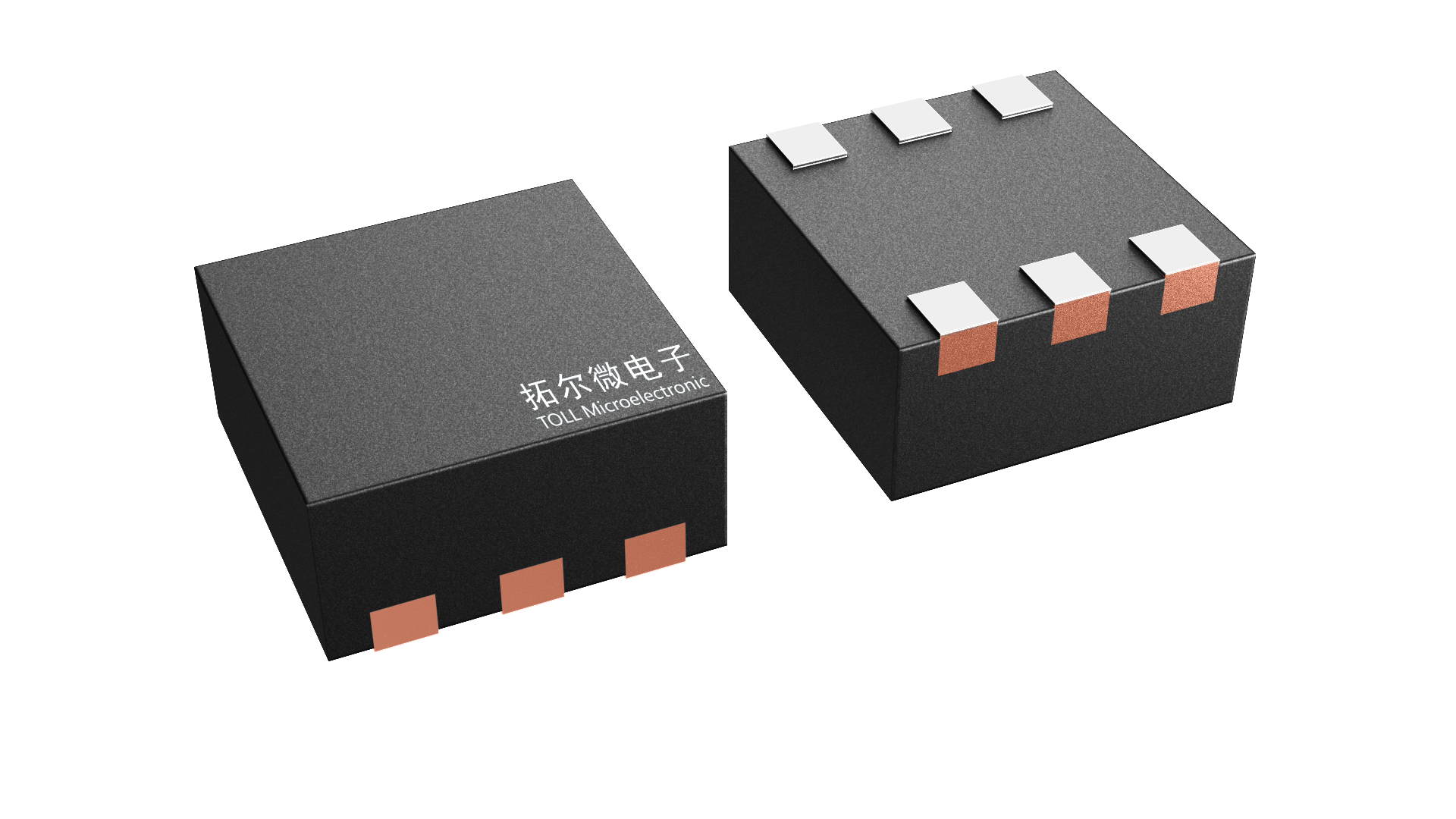

· DFN1.6x1.6-6 Package
The TMI31601 is high efficiency 1.5MHz high switching frequency current mode PWM step-down converters. The devices integrate a main PMOSFET switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. TMI31601 adopts small size DFN1.6x1.6-6 package.
